RF Interconnect
High-temperature Test Cable Assemblies
category：
High Precision Test Grade Cable Assemblies
- Details
-

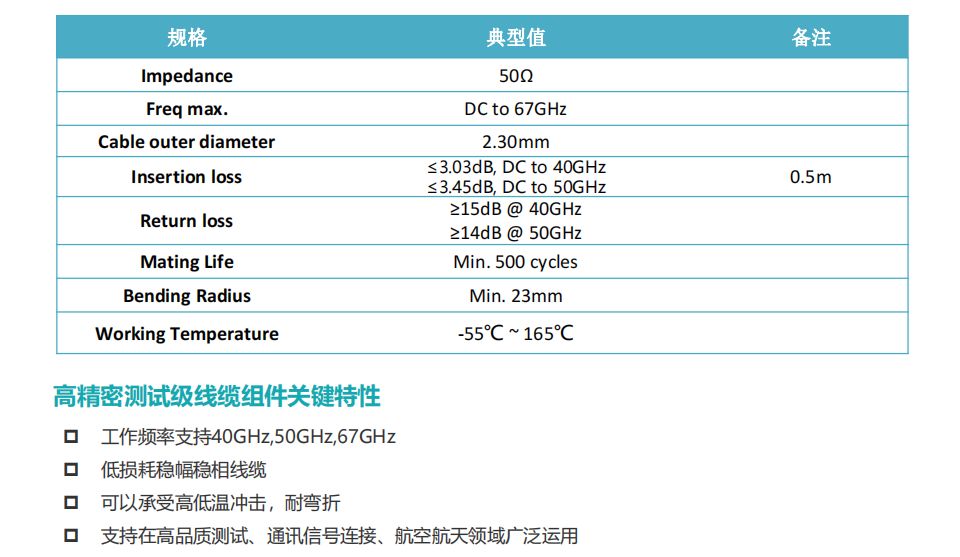

ITEM
Typical Value
Notes
Impedance
50Ω
Freq max.
DC to 67GHz
Cable outer diameter
2.30mm
Insertion loss
≤3.03dB, DC to 40GHz
≤3.45dB, DC to 50GHz
0.5m
Return loss
≥15dB @ 40GHz
≥14dB @ 50GHz
Mating Life
Min. 500 cycles
Bending Radius
Min. 23mm
Working Temperature
-55℃ ~ 165℃
Key Features· Operating range at up to 40GHz, 50GHz, 67GHz· Low loss stable amplitude stable phase cable· Excellent high and low temperature performance· Widely used in high-quality testing, signal connection, aerospace, and other fields
