RF Interconnect
High-precision Armor Test Cable
category：
High Precision Test Grade Cable Assemblies
- Details
-

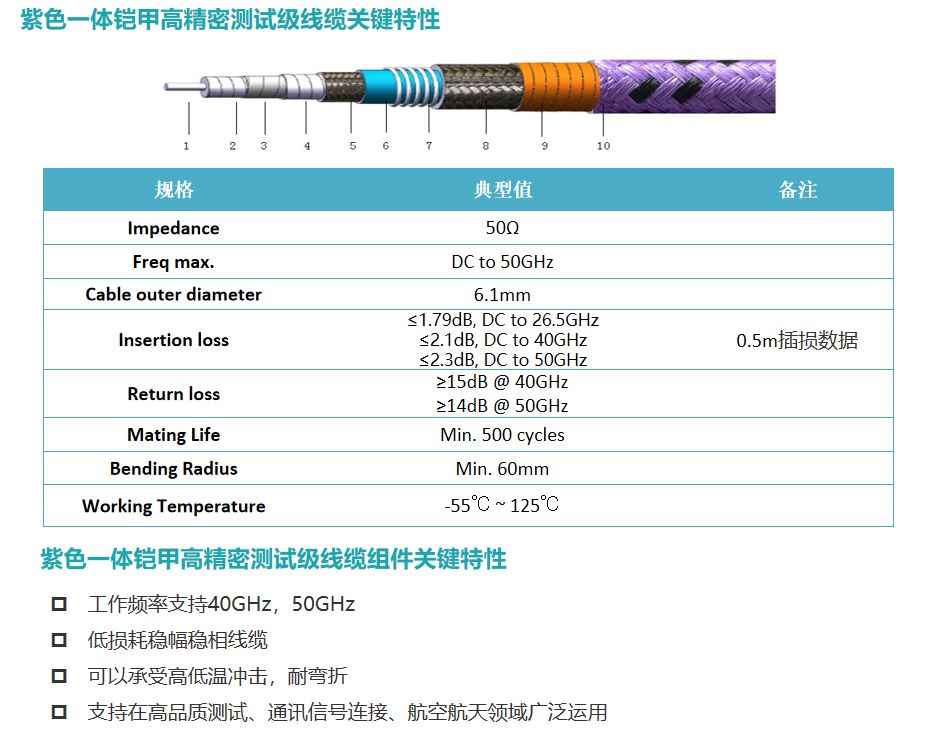

ITEM
Typical Value
Notes
Impedance
50Ω
Freq max.
DC to 50GHz
Cable outer diameter
6.1mm
Insertion loss
≤1.79dB, DC to 26.5GHz
≤2.1dB, DC to 40GHz
≤2.3dB, DC to 50GHz
0.5m
Return loss
≥15dB @ 40GHz
≥14dB @ 50GHz
Mating Life
Min. 500 cycles
Bending Radius
Min. 60mm
Working Temperature
-55℃ ~ 125℃
Key Features
· Operating range at up to 40GHz, 50GHz, 67GHz,
· Low loss stable amplitude stable phase cable
· Excellent high and low temperature performance
· Widely used in high-quality testing, signal connection, aerospace, and other fields
